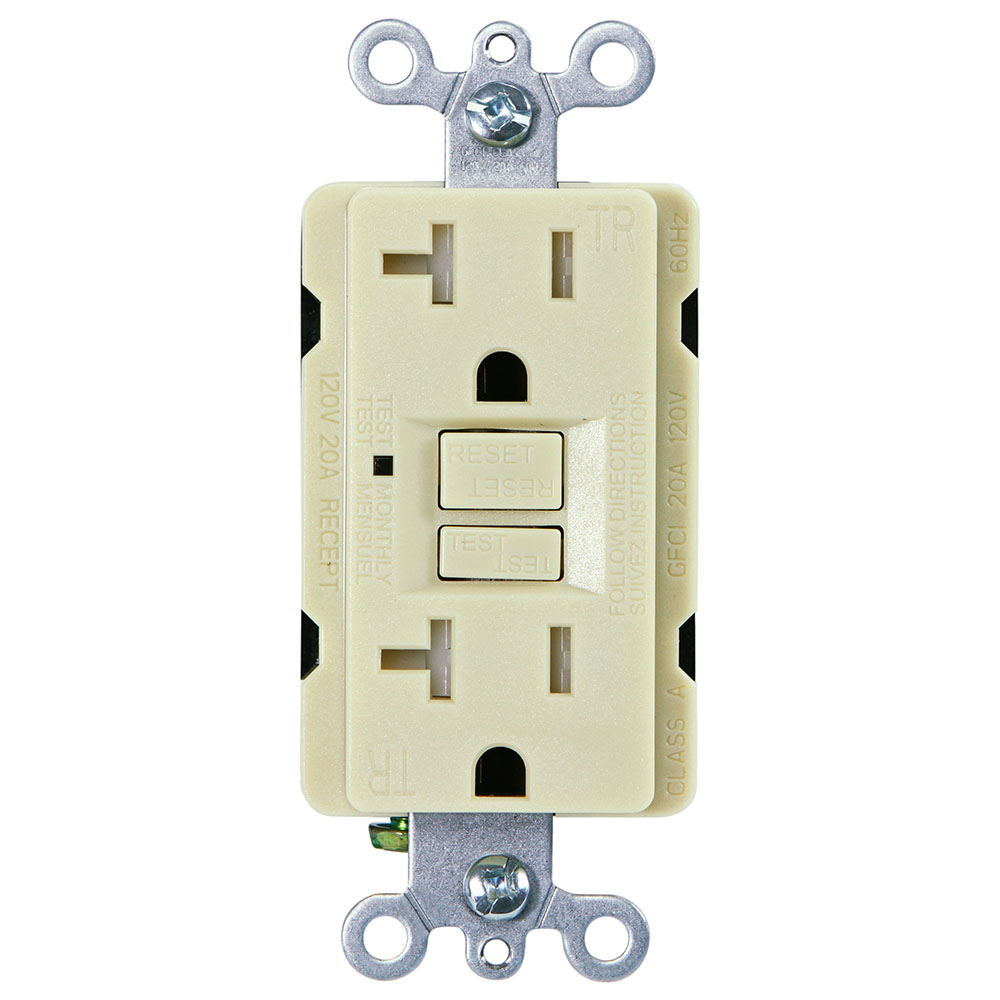

USI Electric 20 Amp Self Test GFCI Tamper-Resistant Receptacle Duplex Outlet, Ivory - G1320TRIV

• Automatic Self-Testing ensures continuous outlet safety
• Tamper-Resistant Construction restricts access to single-prong objects (keys, nails, etc...)
• End of Life Trip Indicator Light provides notification when GFCI no longer delivers power
• Large Test and Reset Buttons match GFCI color (ideal for residential and commercial installations)
• GFCI Status Indicators:
  • Green = Power to Device
  • Orange = Device End of Life
  • Red = Device Protection Loss
• Backwire or Sidewire Compatible:
  • 20 amp Models: #14 AWG solid or stranded copper wire
• Captive Screws are ideal for Wall Plate and Device
• Color-Matched Wall Plate included
• Meets 2015 UL943 Safety Standards
• Meets NEC and CEC Requirements
• CSA C22.2 No. 144.1 Certification
• 2 Year Limited Warranty

The USI Electric 20 Amp Self-Test GFCI Tamper-Resistant Receptacle Duplex Outlet includes an Automatic Self-Testing feature that continuously ensures an outlet's safety. The inclusion of a tamper-resistant construction will restrict access from single-prong objects such as keys, nails and other items. This USI Outlet includes an End of Life Indicator that will provide a notification when the GFCI (ground fault circuit interrupter) no longer delivers power. Large Test and Reset Buttons that match GCFI color make USI Tamper-Resistant Outlets an ideal addition for residential and commercial installations. USI Electric Self-Test Tamper-Resistant Duplex Outlets meet a series of standards, requirements and certifications.

*This selection is not weather-resistant.

• Color: Ivory
• Tamper Resistant: Yes
• Weather Resistant: No
• Rated Voltage: 120 Volt AC
• Rated Frequency: 60 Hz
• Rated Current: 20 Amp
• Trip Time (nominal): 25 mS
• Trip Level: 4 - 6 mA
• Operating Temperature: -31° F to 151° F, -35° C to 36 °C
• Product Dimensions (W x H x D): 2.75 x 4.50 x 1.50 in.
• Product Weight: 0.54 lbs.

• USI Electric Outlet Protection Specs
• GFCI Receptacle Installation Guide
• Device Wiring Instructions
